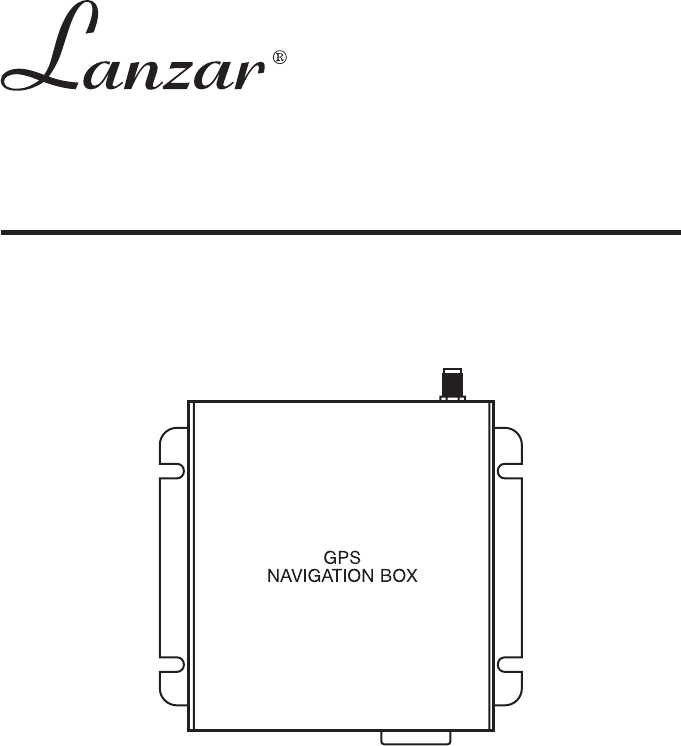

OWNER’S MANUALMobile Video SystemSNV90www.lanzar.com

6)Tap to enter volume option menu.There are two method to adjust thevolume: Method A: When you select or , press OK button on remotecontrol to ad

1) When all the connections is finished,turn the unit on, switch the mode tonavigation mode, the unit will enter thefollowing interface automatically.

When the installation is finished it willreturn to Console interface automatically.5) Tap icon to enter Setting menu, thentap in Setting menu to e

8800-0G9013-

Please read this section carefully and follow all the instructions given. This will helpensure reliable operation and extend the service life for your

• Arrange cables so that no-one can tread on them or trip over them. Do not placeany items on the cable.• Working with memory cardThis navigation sys

4INSTALLATION• Mounting The Navigation Set In A CarUse 4 screws (5X25) to install the navigation set to the car, please refer to the followed diagram.

5ACCESSORIES• GPS BOX• GPS ANTENNA• REMOTE SENSOR• SD CARD• SCREW 5X25 (4 PCS)• RGB TO RGB CABLE• RGB TO RCA VIDEO LINEOUT• REMOTE CONTROL

1. GPS ANT (GPS Antenna, To receive GPS signal.)2. Socket (Connect GPS Box And The Unit)3. RGB/VIDEO Switch (Switch between RGB mode and VIDEO mode.)4

7REMOTE CONTROL1. ESC Press it to exit the current menu.2. (ENTER) Press it to enter the selected item.3. / , / These buttons serves as navigati

8ELECTRICAL CONNECTIONWiring (1)Wiring (2)EXTERALANTTENAGPS BOX20 PINGPS BOXEXTERALANTTENARGB OUTRCA OUT(WHITE)(RED)(YELLOW)AUDIO L OUTAUDIO R OUTVIDE

• ConsoleWhen all the connections is finished,turn the unit on, switch the mode tonavigation mode, the unit will enter thefollowing interface automat
